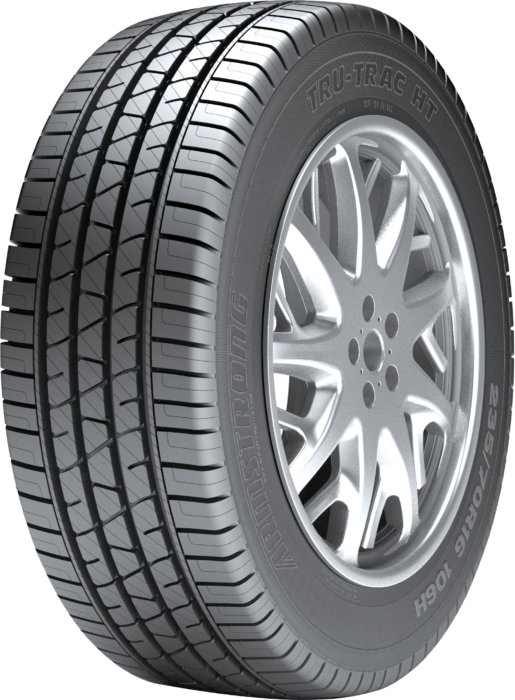

TRU-TRAC HT
True to the Armstrong TRU-TRAC legacy, this Highway Terrain tire provides greater towing ability and increased grip under skidding conditions. An optimized curved tread increases tire rigidity and reduces rolling resistance, while a noise-blocking bar reduces premature wear and road traction noise.
Category: Highway Terrain
6 YEAR LIMITED WARRANTY
Features

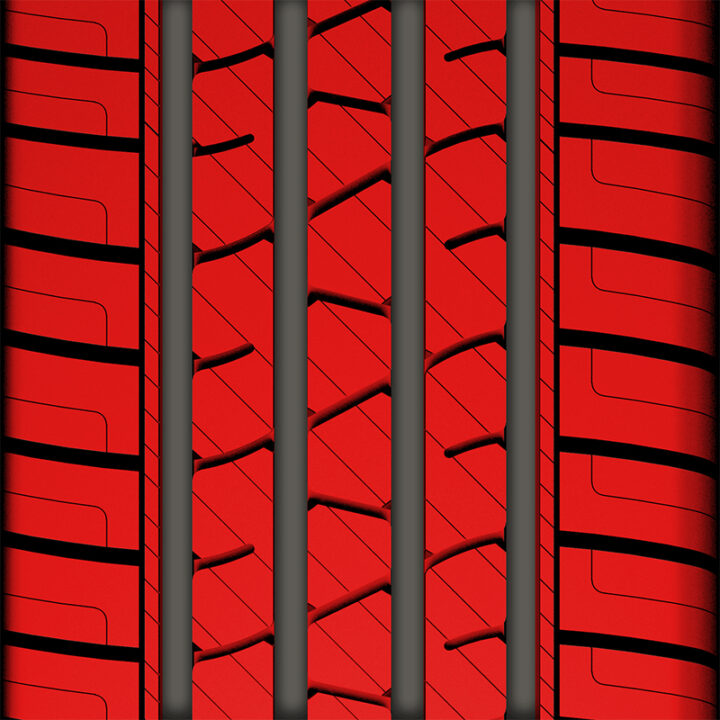

A specially engineered tread.
A specially engineered tread design provides greater towing ability on the highways.

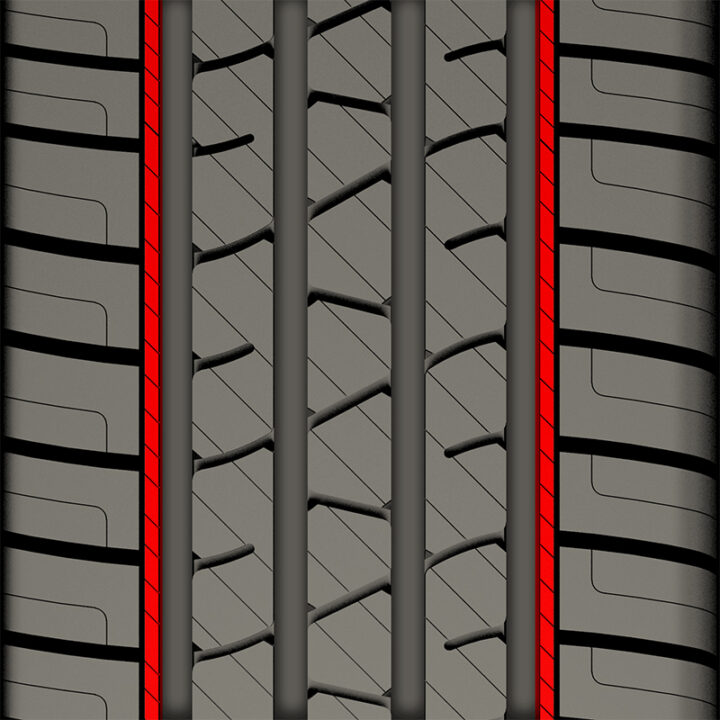

A noise-blocking bar.
A noise-blocking bar on the tire shoulders delays premature wear and reduces sound that is generated by road traction.

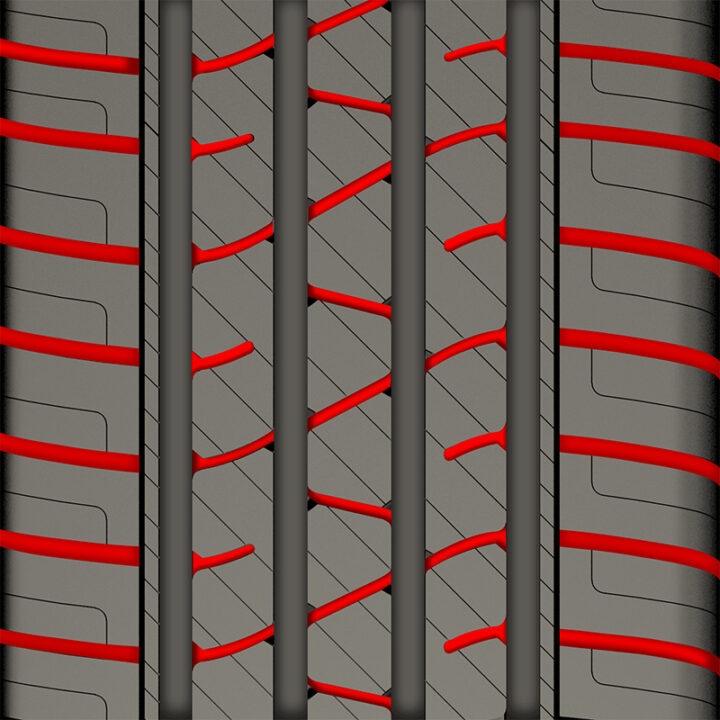

Continuous open lateral channels.
Continuous open lateral channels increase tire grip under skidding conditions and provide enhanced safety.

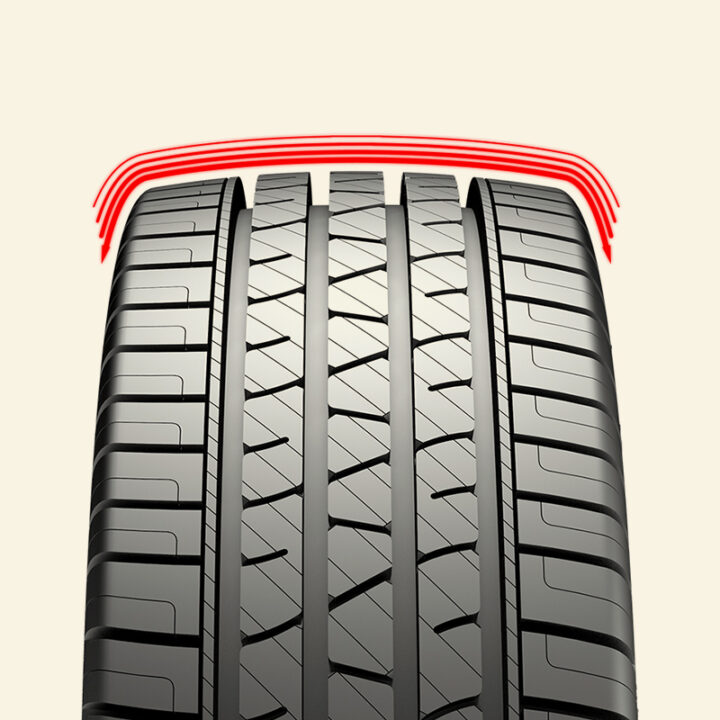

An optimized curved tread profile.
An optimized curved tread profile increases rigidity and reduces rolling resistance.
Specifications
| RIM DIAMETER | SERIES | SIZE | PR | LOAD INDEX / SPEED SYMBOL | MAX LOAD (SINGLE) (LBS) | MAX LOAD (DUAL) (LBS) | MAX INFLATION (PSI) | RIM WIDTH (IN) | SECTION WIDTH (IN) | OVERALL DIAMETER (IN) | TREAD DEPTH (32NDS) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 55 | 275/55R20 | - | 117H XL | - | 2833 | 50 | 8.5 | 11 | 31.9 | 13 |
| 60 | 275/60R20 | - | 115H | - | 2679 | 44 | 8 | 11 | 33 | 13 | |
| 18 | 60 | 265/60R18 | - | 110H | - | 2337 | 44 | 8 | 10.6 | 30.5 | 13 |
| 60 | 285/60R18 | - | 116H | - | 2756 | 44 | 8.5 | 11.5 | 31.5 | 13 | |
| 65 | 265/65R18 | - | 114H | - | 2600 | 44 | 8 | 10.7 | 31.5 | 12 | |
| 70 | 255/70R18 | - | 113H | - | 2535 | 44 | 7.5 | 10.1 | 32 | 12 | |
| 70 | 265/70R18 | - | 116H | - | 2756 | 44 | 8 | 10.8 | 32.7 | 12 | |
| 17 | 65 | 225/65R17 | - | 102H | - | 1874 | 44 | 6.5 | 9.1 | 28.4 | 11 |
| 65 | 235/65R17 | - | 108V XL | - | 2205 | 50 | 7 | 9.4 | 29 | 11 | |
| 65 | 245/65R17 | - | 107H | - | 2149 | 44 | 7 | 9.8 | 29.5 | 11 | |
| 65 | 265/65R17 | - | 112H | - | 2469 | 44 | 8 | 10.7 | 30.5 | 12 | |
| 70 | 265/70R17 | - | 115H | - | 2679 | 44 | 8 | 10.8 | 31.7 | 11 | |
| 16 | 70 | 215/70R16 | - | 100H | - | 1764 | 44 | 6.5 | 8.8 | 27.8 | 11 |
| 70 | 225/70R16 | - | 103H | - | 1929 | 44 | 6.5 | 9.1 | 28.3 | 11 | |
| 70 | 235/70R16 | - | 106H | - | 2094 | 44 | 7 | 9.6 | 29 | 11 | |
| 70 | 245/70R16 | - | 111H XL | - | 2403 | 50 | 7 | 9.8 | 29.4 | 11 | |
| 70 | 265/70R16 | - | 112H | - | 2469 | 44 | 8 | 10.7 | 30.4 | 11 | |
| 15 | 75 | 235/75R15 | - | 109H XL | - | 2271 | 50 | 6.5 | 9.3 | 28.7 | 13 |
| 18 | 65 | LT275/65R18 | 10 | 123/120R | 3415 | 3085 | 80 | 8 | 10.8 | 32.1 | 16 |
| 70 | LT275/70R18 | 10 | 125/122S | 3640 | 3305 | 80 | 8 | 10.7 | 32.8 | 16 | |
| 17 | 70 | LT265/70R17 | 10 | 121/118T | 3195 | 2910 | 80 | 8 | 10.5 | 31.7 | 16 |
| 70 | LT285/70R17 | 10 | 121/118S | 3195 | 2910 | 80 | 8 | 11.1 | 32.8 | 16 | |
| 75 | LT245/75R17 | 10 | 121/118S | 3195 | 2910 | 80 | 7 | 9.8 | 31.5 | 15 | |
| 80 | LT235/80R17 | 10 | 120/117R | 3085 | 2835 | 80 | 6.5 | 9.4 | 31.7 | 14 | |
| 16 | 75 | LT225/75R16 | 10 | 115/112T | 2680 | 2470 | 80 | 6 | 8.7 | 29.3 | 14 |
| 75 | LT245/75R16 | 10 | 120/116S | 3042 | 2755 | 80 | 7 | 9.6 | 30.5 | 15 | |
| 75 | LT265/75R16 | 10 | 123/120S | 3415 | 3085 | 80 | 7.5 | 10.5 | 31.6 | 16 | |
| 75 | LT285/75R16 | 10 | 126/123R | 3750 | 3415 | 80 | 8 | 11.7 | 32.6 | 17 | |
| 85 | LT235/85R16 | 10 | 120/116S | 3042 | 2755 | 80 | 6.5 | 9.6 | 31.6 | 15 |
